Forms

This spec describes the “Forms” feature.

“Forms” lets non-technical users visually design and share data-entry forms publicly. Users select a base table, pick columns (including foreign-key, and reverse-foreign-key links), arrange and configure fields, and publish a public link. End users can then submit the form which store records in the database, with nested creation of related records.

2025-05-05: Updates after review calls with team

Pavish: The following content contains updates over the initial iteration based on review comments and calls with Ghislaine, Zack, Brent, and Sean.

We have enough agreement on the spec to proceed with UX design.

Record summary template & Record selector

  • We will allow the admin choose searchable columns, not limited by the columns in the record_summary_template.
  • The following structure lookup will now replace form.elements[].record_summary_template:
    {
      "lookup": {
        "columns": [
          {
            "path": [[2, 3], [3, 10], [10, 15]],
            "label": "Name"
          },
          {
            "path": [[2, 4]],
            "label": "Email"
          },
          {
            "path": [[2, 21], [21, 98]],
            "label": "Location"
          }
        ],
        "summary_template": [0, "-", 2]
      },
      // ...,
    }

  • lookup.columns would contain all the columns the user can filter through.
  • lookup.summary_template works similarly to the record summary template, however, the column-elements correspond to indexes from lookup.columns.
    • This way the columns used in the summary_template would always be a subset of columns defined in the lookup.
  • lookup.columns[].path is a jp_path.
    • Sean expressed his opinion that the record_summary_template currently uses a much simpler path that follows FK links, instead of the jp_path which requires defining each join.
      • This would make the work move faster since we already have the implementation for it.
    • Brent specified concern that having the jp_path is more robust.
    • Pavish is fine with either approach.
      • We consider this an implementation detail and let Brent take a call on this during backend implementation work.

UX for Record selector

  • The UX changes would be in the dropdown displayed to the user while they click on a foriegn_key field.
  • The rows will contain the record summary, along with the values of each column that is part of lookup.columns.
    • Each row would contain the values displayed below the record summary in a “column: value” kind of manner.
  • The label displayed in the search bar & the rows would be from lookup.columns[].label.
  • Sorting would be in the ascending order for each column in lookup.columns.
  • Searching would be starts_with for text columns and equals for non-text columns. The combination between column-values would be AND.

Unauthenticated RPC actions

  • forms.get as mentioned in the initial iteration would be renamed to forms.show, which would not contain sensitive values like owner_oid.
  • We should have a separate forms.get which would be the private form definition that is fetched by Mathesar users.
  • The new UX would require a forms.list_linked_records, which will return the records & summaries for the list displayed to the user in the dropdown.

Django DB modal

  • Brent wants to spend some time thinking if form.elements should be a table instead of jsonb.
  • Pavish is fine with either, but prefers the jsonb since the actual performance consideration would be in creating the queries, not in parsing the json/reading from table.
  • This would not affect the API request/response structure.
  • This is an implementation detail and Brent would take a call during backend implementation work.

2025-04-29: Initial iteration

Terminology

  • Reverse foreign key: Denotes foreign key columns in other tables that link to base table records.
  • Mathesar user: Refers to users using Mathesar to create a form.
  • End user: Refers to people filling the form.

Requirements

User stories

  • Form Builder (Mathesar admin)

    • I want to share a form to end users via a public link to collect data required for my business needs.
    • I want to select a base table & related tables, and choose which columns appear on my form so I can tailor data-entry to business needs.
    • I want to ensure that all fields related to my business needs are part of the same form. This may involve multiple different tables related via FKs and reverse-FKs.
    • I want end users to be able to search through existing records with summaries, when they’re filling in a foriegn key field.
    • I want to allow end users to be able to create new related records inline, if needed.
    • I want to configure labels, descriptions, placeholders, and validation rules for each field to guide end users.
    • I want to reorder fields via drag-and-drop and insert dividers or instructional text to structure my form visually.
    • I want the main record and any related/nested records to all be created in one shot, when the end user submits the form.
  • Form Submitter (End User)

    • I want a clear, labelled form that only shows fields relevant to my task.
    • I want descriptive messages to guide me fill the form.
    • I want clear indications when the form is successfully submitted.
    • I want useful help messages when form submission fails due to an error.
    • I want to know when I’m filling the form incorrectly while I’m filling it, not only while submitting.

A simplified scenario

  • Mathesar admin wants to create a form for end-users to fill in their favourite movies, including the director, producer, casting information, and genres.

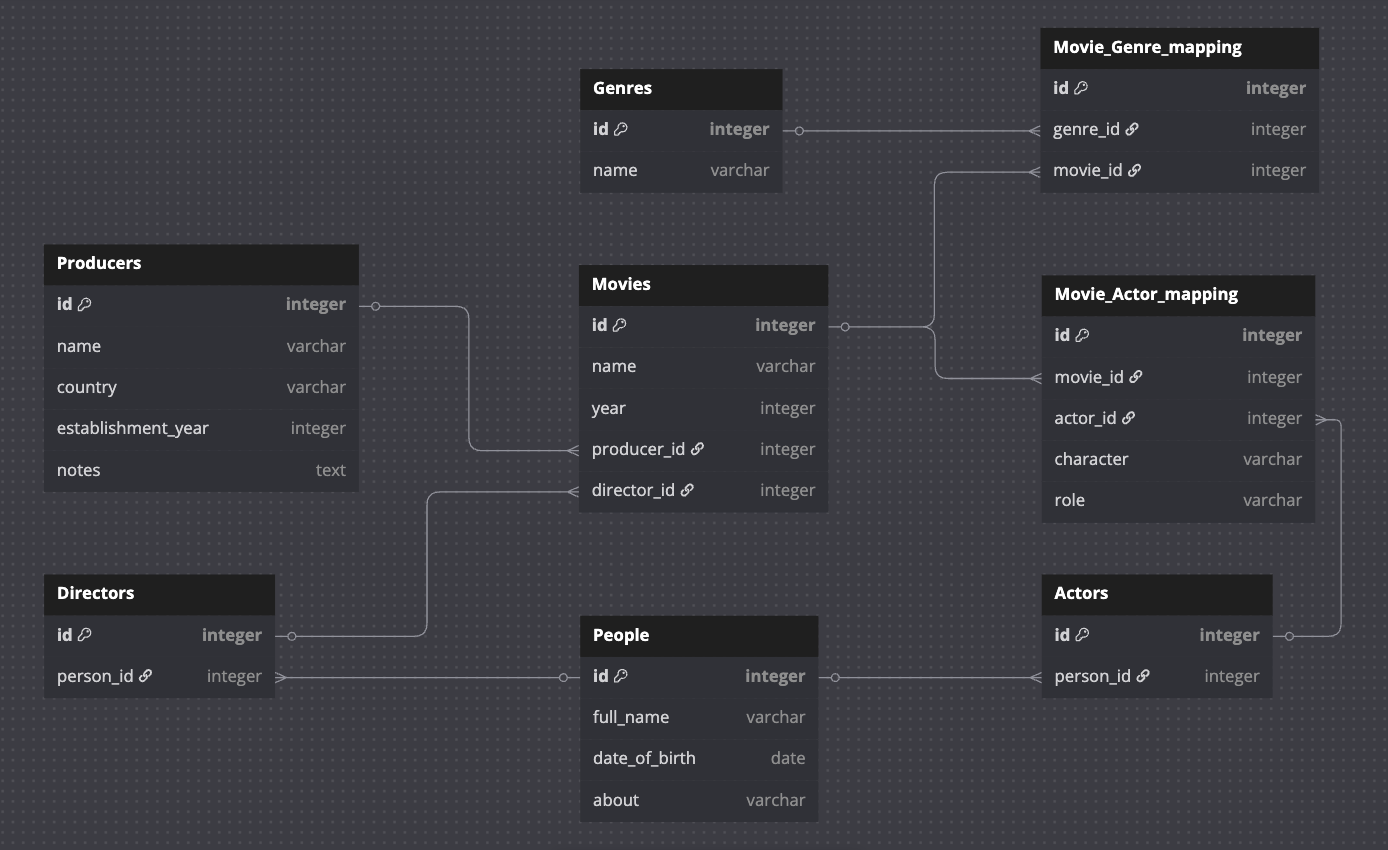

  • Mathesar admin has the following schema: user-scenario-db-schema.png
  • Things to note:
    • This is not a real-life example and is used only for representing the following cases:
      • Normal fields (Scalar columns in the Movies table).
      • Foriegn key fields referencing a table with multiple columns (producer_id -> Producers).
      • Foriegn key fields referencing a table with a single column (director_id -> Directors).
      • Reverse-foreign-key fields referencing a table with multiple columns (Movie_Actor_mapping).
      • Reverse-foreign-key fields referencing a table with a single column (excluding the fk to the base table) (Movie_Genre_mapping), i.e. a mapping table.
    • The wireframes below are representational, taking into consideration the implementation feasibility. They are not final.
  • Form displayed to the end user:

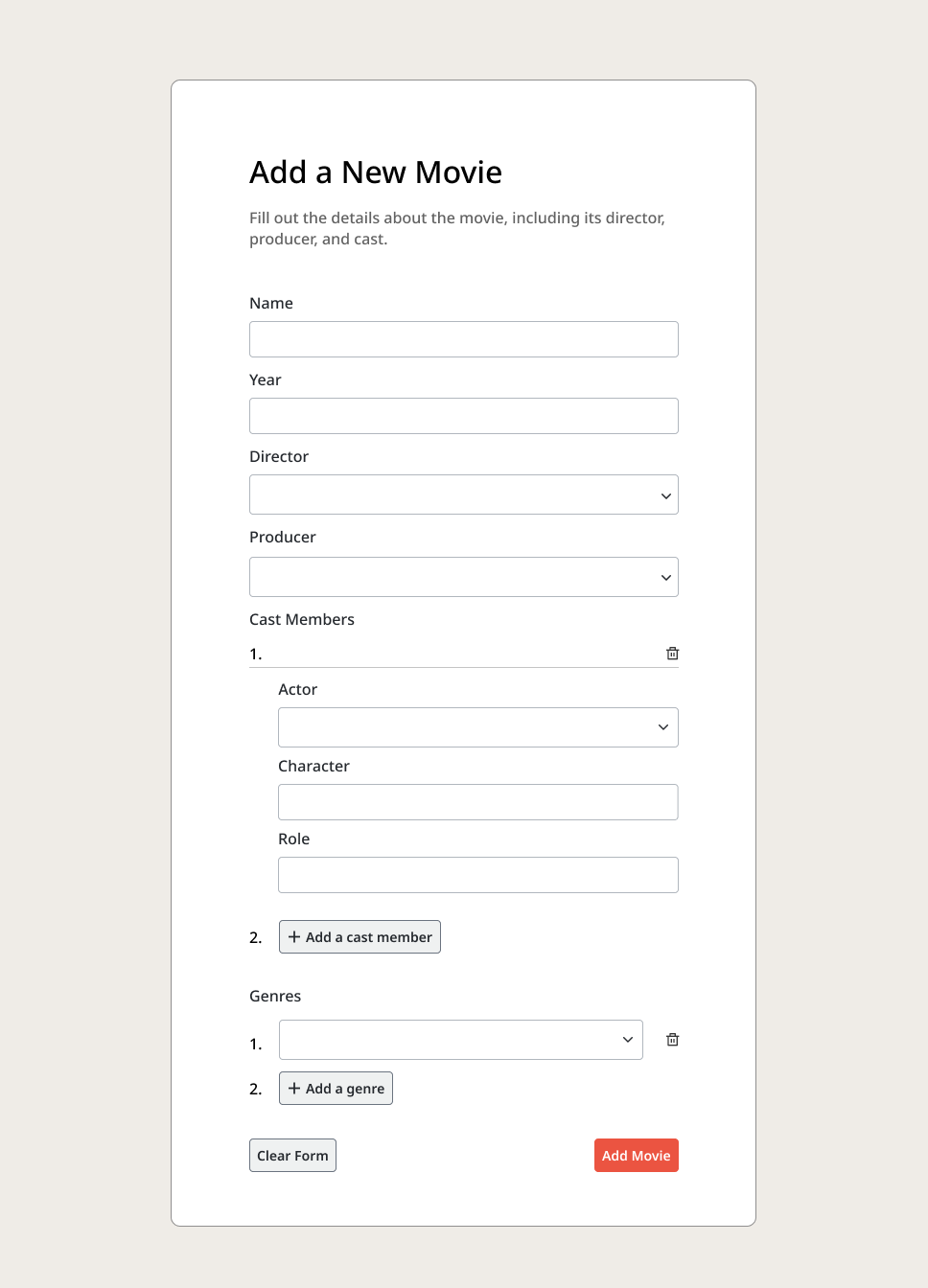

    • new-form.png
    • The id columns are not displayed i.e. any column that has a dynamic default is hidden.
      • The admin can still choose to display these columns in the form as readonly fields.
    • The foreign key field movie.director_id is displayed as a dropdown which selects records from Directors.
    • The foreign key field movie.producer_id is displayed as a dropdown which selects records from Producers.
    • End users can add entries in Movie_Actor_mapping, which is labelled as “Cast Members” in the form.
      • The admin can modify any label & add descriptions.
    • The “Genres” label has an input that adds entries to Movie_Genre_mapping.
      • Since that table is a mapping table with a single column, only the field for fk Movie_Genre_mapping -> genre_id is shown.
      • It opens a dropdown showing entries from Genres.
  • Filling in a foriegn key field:

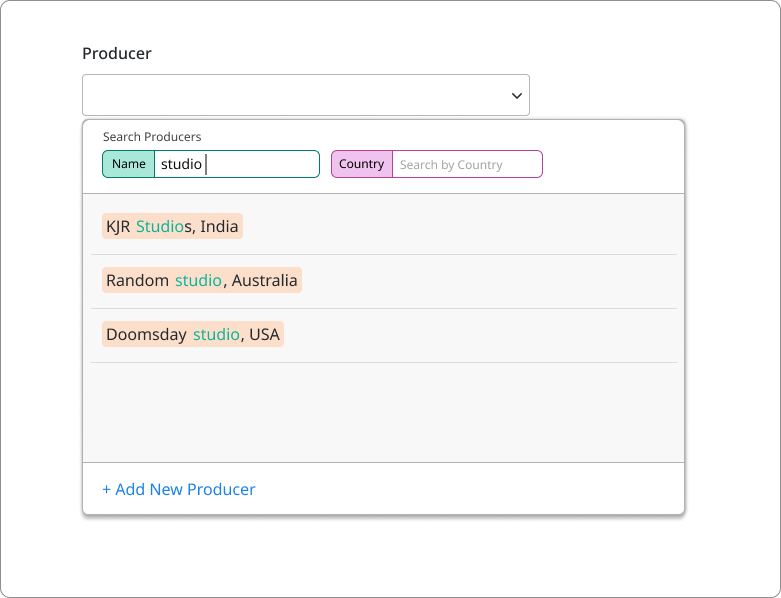

    • select-producer.png

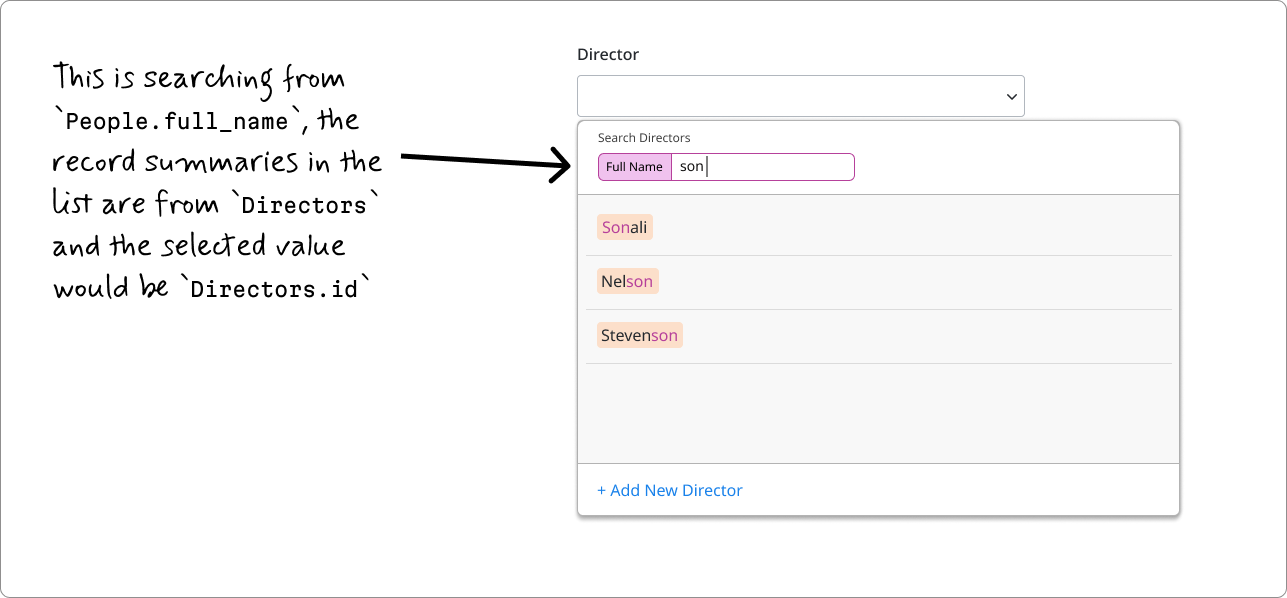

    • select-director.png

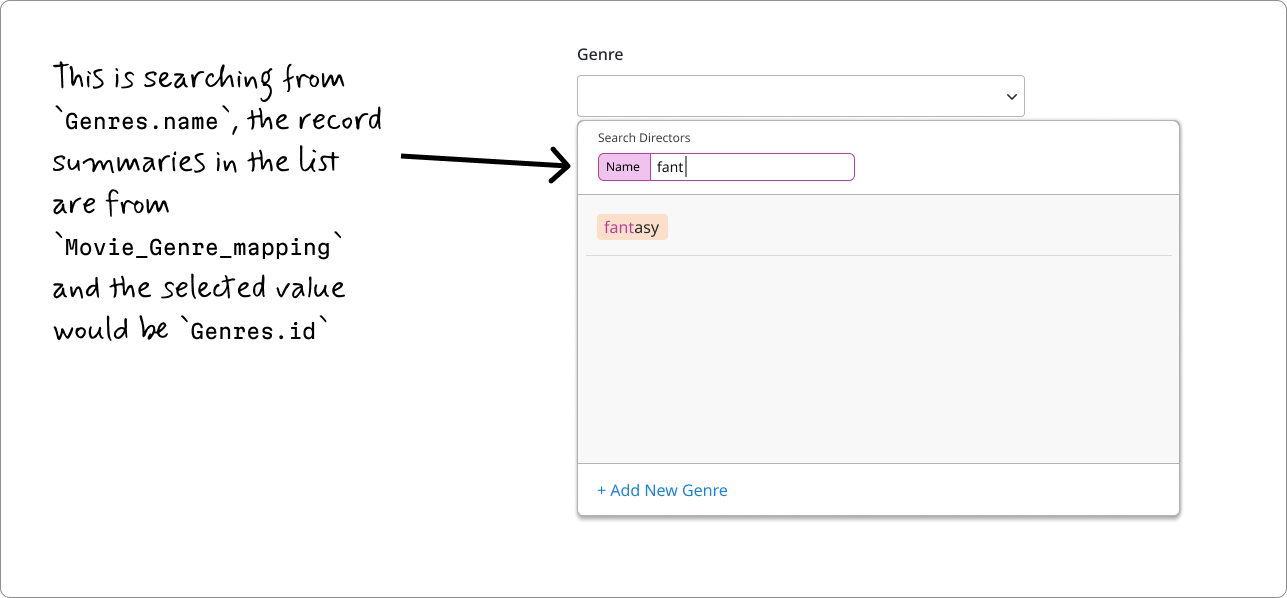

    • select-genre.png
    • Admin can configure whether or not they want to allow end users to add new records.
      • If they allow the ‘+ Add New’ option is shown in the dropdowns.
      • Admins can configure the text shown.
    • This is a record selector shown in a dropdown. Only the summaries are shown in the list.
    • There will be a small Pagination section when the entires are more than 20.
    • The search area contains the columns that are part of the record summary.
    • These columns could be from any related joinable table, as configured by the record summary.
    • The admin cannot choose searchable columns if they are not part of the record summary configuration. The Record summary configuration is the only source here.
    • The admin can customize the labels for these columns.
  • Adding new records in related tables via fk fields:

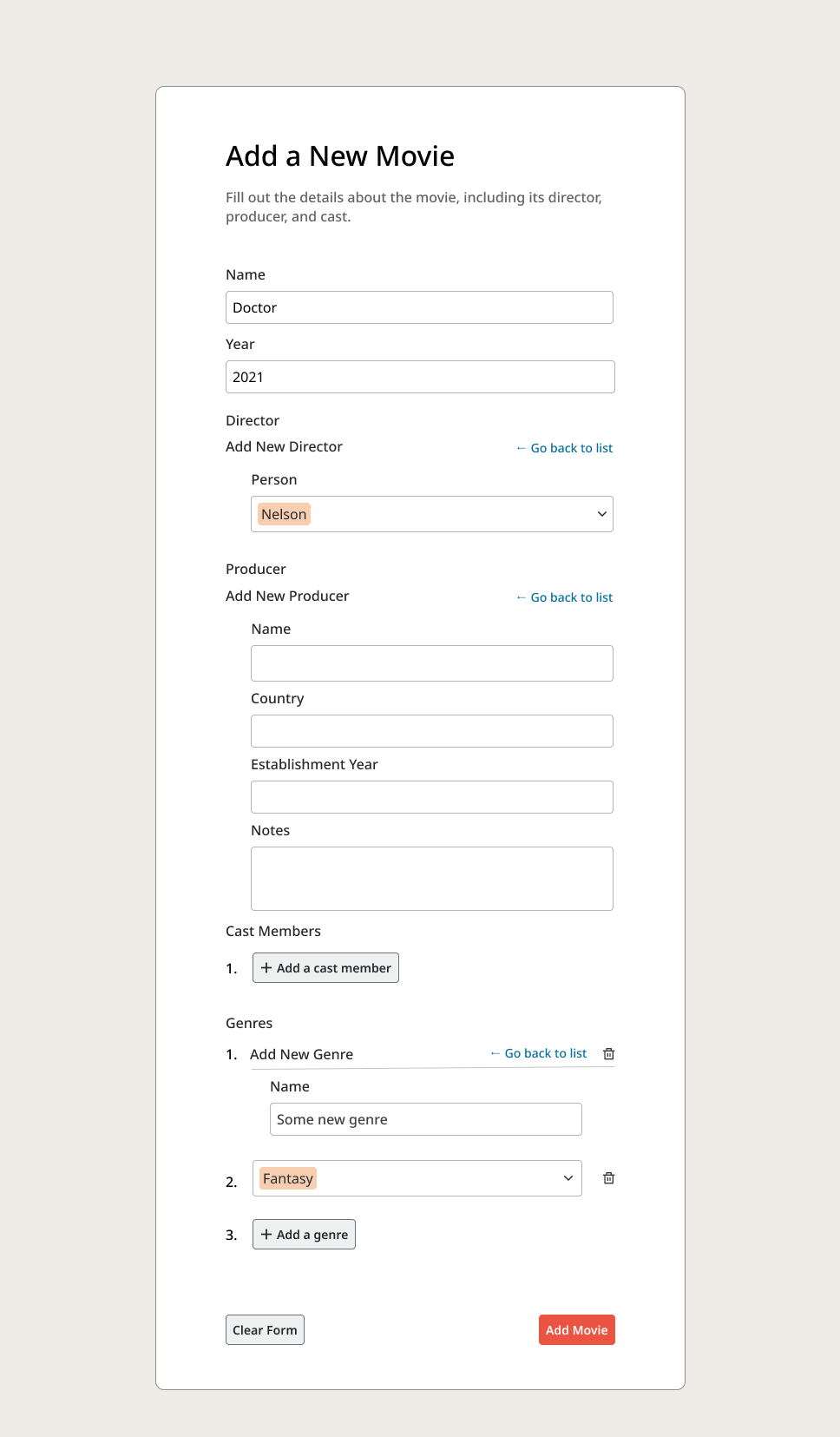

    • form-new-entry-fk-field.png
    • End users can choose to add new records for Producers, Directors, and Genres.
    • Notice that the “Director” field shows the field “Person” for the column person_id which is an a FK for People.
    • The user could still add a nested entry for the People table using the “Person” dropdown.

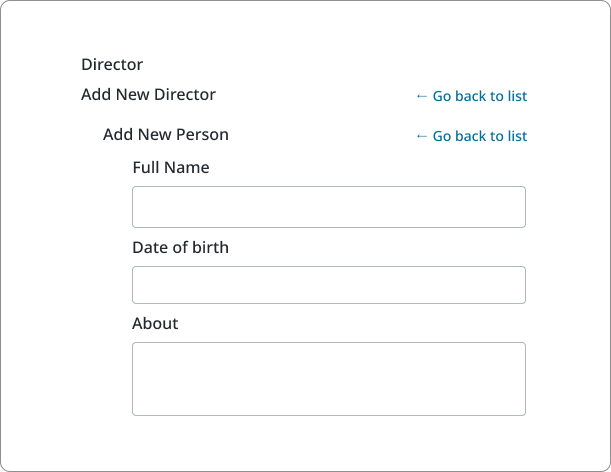

      • form-new-nested-fk-entry.png
    • “Genres”, however shows fields from the Genre table directly, since Movie_Genre_mapping is a mapping table with just a reverse-fk.
      • It adds entries to both Genre and Movie_Genre_mapping.

Scope

Initial release of “Forms”:

  1. Select form fields from base table.
  2. Select form fields from related tables - both fk links and reverse-fk-links.
  3. Publicly sharing a form for end-users to fill.
  4. Customizable styling and success/failure messages.
  5. Preview forms while creating/editing.
  6. Basic Permissions.
    • Each form is owned by a role.
  7. Redirection after submission.
    • Allow redirection to a custom endpoint after successful form submission. This would happen after showing the success message, with a timer.
  8. Basic form-level validations.
    • Marking fields as “required” on the form to disallow empty fields, while the underlying columns allow NULL & empty strings.

To consider in future releases:

  1. Granular permissions management for forms.
  2. Restrictions on filling forms.
    • Login required,
    • Password,
    • Captchas, etc.,
  3. Email notifications after a form is submitted.
  4. Creating an ‘exploration’ from a ‘form’ to view de-normalized data filled via forms.
  5. Perform DDL operations while building form.
    • Being able to create a new table directly in the form view.
    • Being able to create new columns directly in the form view.
  6. Advanced form-level validations.
  7. Multi-language support for end-users filling the form.
  8. Customizable logos, banners, and accent color.
  9. Conditional logic to display form fields based on sibling field values

Implementation notes

Form structure

Type definitions:

interface Form {
  id: number;
  base_table_oid: number;
    schema_oid: number; // Readonly - based on base_table_oid
  name: string;
  description: string;
  slug: string;
  published: boolean;
  owning_role_oid: number; // The owner of the form
  // owning_role_oid should be a member of submission_role_oid.
  // Default value of submission_role_oid is the same as owning_role_oid.
  submission_role_oid: number;
  submission_ui: {
    label: string;
    message: string;
    on_submit: SubmissionAction;
  };
  elements: FormElement[];
  created_at: string; // timestamp
  updated_at: string; // timestamp
}

// Discriminated union of form elements
type FormElement =
  | TextElement
  | DividerElement
  | ScalarColumnElement
  | ForeignKeyElementWithCreate
  | ForeignKeyElementWithoutCreate
  | ReverseForeignKeyElement;

interface BaseElement {
  id: string; // An uuid
  kind: string;
  styling?: { // Representational, will change during implementation
    size?: "header" | "subheader" | "normal" | string;
  }
}

interface TextElement extends BaseElement {
  kind: "text";
  text: string;
}

interface DividerElement extends BaseElement {
  kind: "divider";
}

interface ColumnElement extends BaseElement {
  label: string;
  description: string;
  placeholder: string;
  validation: ValidationRules;
  readonly: boolean;
}

interface ScalarColumnElement extends ColumnElement {
  kind: "scalar_column";
  column_oid: number;
}

interface ForeignKeyElement extends ColumnElement {
  kind: "foreign_key";
  column_oid: number;
  target_table_oid: number;
  record_summary_template: RecordSummaryTemplate;
}

// When allow_create === true, nested_elements is required
interface ForeignKeyElementWithCreate extends ForeignKeyElement {
  allow_create: true;
  nested_elements: FormElement[];
}

// When allow_create === false, nested_elements is not allowed
interface ForeignKeyElementWithoutCreate extends ForeignKeyElement {
  allow_create: false;
}

interface ReverseForeignKeyElement extends ColumnElement {
  kind: "reverse_foreign_key";
  linked_table_oid: number;
  nested_elements: FormElement[]; // Always required
}

interface ValidationRules {
  required: boolean;
}

Sample:

{
  "id": 1, // Form id
  "base_table_oid": 42,
    "schema_oid": 1,
  "name": "Movie addition form", // Unique per schema
  "description": "string",
  "slug": "custom-link", // Used to compose /public/<slug>, unique, default: random uuid
  "published": true, // Toggles public link
  "owning_role_oid": 11020,
  "submission_role_oid": 11023,
  "submission_ui": {
    "label": "Send",
    "message": "thank you!", // Message to show after submission
    "on_submit": {
      "redirect": 'http://some-random-url',
      //... set of actions to do
    }
  },
  "elements": [
    {
      "id": "text_01",
      "kind": "text",
      "text": "Add a New Movie",
      "styling": { // Custom stlying options - used only by the frontend
        "size": "header"
      },
    },
    {
      "id": "div_01",
      "kind": "divider"
    },
    {
      "id": "fld_01",
      "kind": "scalar_column",
      "column_oid": 7,
      "label": "Name",
      "description": "",
      "placeholder": "some movie name", // Placeholder for input
      "validation": { // Additional validation on the form apart from DB validation
        "required": true
      },
      "readonly": false, // Can only be true for columns that have default values
      "styling": {},
    },
    {
      "id": "fld_02",
      "kind": "foreign_key",
      "column_oid": 9,
      "target_table_oid": 57,
      "record_summary_template": [], // User can configure custom record summary for each form
      // For foreign key rows
      "allow_create": true, // “+ Add new” button
      // Only one row can be created newly for foreign_key field kind
      "nested_elements": [ // Present if allow_create is true
        // ...
      ],
      "label": "Director",
      "description": "",
      "placeholder": "",
      "validation": { "required": true },
      "readonly": false,
      "styling": {},
    },
    {
      "id": "fld_03",
      "kind": "reverse_foreign_key",
      "linked_table_oid": 58,
      // Always allow creating records for reverse_foreign_key field types
      // Multiple rows can be created newly for reverse_foreign_key field
      "nested_elements": [
        {
          "id": "fld_03_01",
          "kind": "scalar_column",
          "column_oid": 3,
          "label": "Character"
        },
        // ...
      ],
      "label": "Cast Members",
      "description": "",
      "validation": {
        "required": false, // Form can be submitted with `0` rows.
      },
      "styling": {},
    }
  ],
  "created_at": "2015-10-03T00:00:00.0 AD",
  "updated_at": "2015-10-03T00:00:00.0 AD",
}

JSON while submitting the form:

{
  "fld_01": "value_01",
  "fld_02": "value_02",
  "fld_03": "value_03",
  "fld_03_01": "value_03_01",
  //...
}

Django DB schema

  • A single table named: Forms.
    id integer [primary key]
    base_table_oid oid
    name varchar
    description text
    owning_role_oid oid
    submission_role_oid oid
    elements jsonb
    published true
    slug string
    submission_ui jsonb
    created_at timestamp
    updated_at timestamp

  • elements are stored as a jsonb array.
    • Open to consideration: Using tables for elements instead of jsonb.
  • slug is unique.
  • name is unique per schema.
    • It is debatable whether we want schema_oid to be part of the table or validation to be at service layer.

DB Permissions

  • A form is associated with the role of the Mathesar user that created the form i.e. owning_role_oid is set to the oid of the role used by the user that creates the form.
  • The user can change the role used when the form is submitted by setting the submission_role_oid.
  • By default submission_role_oid is the same as owning_role_oid.
  • The owning_role_oid SHOULD BE A MEMBER OF submission_role_oid. Other roles cannot be set as submission roles.
    • This restriction is consitent with how PostgreSQL functions.
  • If owning_role_oid is a superuser, any role can be set for submission_role_oid.
  • A owning role can change the ownership of the form to another role.
  • Important security consideration:
    • We do not want users creating a form on tables they don’t have INSERT privileges on, then sharing it publicly with an evelated role they don’t have access to, inorder to fill the tables.
  • Only the user with a role owning a form should be able to edit the form.
  • All other users can view the form and use the public links.

Public urls & RPC methods

  • An unauthenticated route at <mathesar_url>/forms/<form_slug>.
  • forms.get:
    • Required: form_slug or form_id.
    • Returns the form structure object associated with the slug.
    • Returns the table structure, column definitions, constraint defintions of all the tables mentioned in the form & it’s elements (recursively):
      • base_table_oid.
      • elements[].target_table_oid.
      • elements[].linked_table_oid.
    • Returns the column definitions of columns part of the record_summary_template within form elements (recursively).
  • forms.submit.
    • Required: form_id.
    • Required: values for the form as a json.
  • forms.list_record_summaries:
    • Required: form_id.
    • Required: element_id.
      • target_table_oid oid is identified based on the element id.
    • Accepts filter defintion.
      • The filter columns should be a part of record_summary_template associated with element_id.
    • Returns list of record summaries of fk tables.
    • (This might change significantly based on the final UX)

Searching through record summaries

  • A record summary template looks like this: [[4, 2], "-", [1]].
  • Each array represents a path to a column, and this definition is used to make joins for the record summary. The text elements are static.
  • Each path in a record summary would now have a new field ‘alias’, which is then used as both the label to display to the user and the key in filtering a list of summaries in the record summary dropdown. (Refer the sample ux above).
  • Eg., [{ path:[4, 2], alias: 'Name' }, "-", { path: [1], alias: 'Id' }].
  • (This might change significantly based on the final UX).
  • (Open to consideration: Use a table view with lookup column as we do right now in the table page).

Creating the records

  • When the form is submitted, all related records should be created in a single transaction.
  • Order of precedence:
    • Insert records in tables referenced via foreign keys.
      • If nested elements are present, treat the related table as the base_table & insert records recursively.
    • Insert records in base table.
    • Insert records in tables with link to base table.
      • If nested elements are present, treat the linked table as the base_table & insert records recursively.
  • Example sql:
    BEGIN;

    WITH producer_cte AS (
      INSERT INTO Producers (name, country)
      VALUES ('New Producer', 'India')
      RETURNING id
    ),

    base_cte AS (
      INSERT INTO Movies (name, year, producer_id)
      VALUES ('Some Movie', 2025, (SELECT id FROM producer_cte))
      RETURNING id
    )

    INSERT INTO Movie_Genre_mapping (movie_id, genre_id)
    SELECT id, genre_id FROM base_cte,
    (
      VALUES
        (1),
        (2)
    ) AS child_values(genre_id);

    COMMIT;
